Phoenix Fire Lily

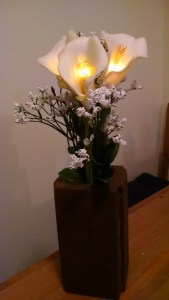

Phoenix Fire Lily:  Solar rechargeable battery connected to a flickering LED inside an artificial lily flower residing in a hand-crafted wooden vase.

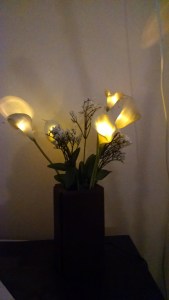

IMG_20180731_145416444IMG_20180825_170808853lily

I don’t know about you, but I rarely have money to spend on projects and whenever possible reusing and re-purposing junk is ideal.  Many of my projects contain parts I’ve purchased at local dollar stores and items found through eBay.

IMG_20180808_174135637

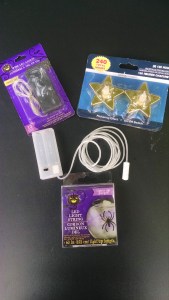

Discount hackables!!



Parts:

  • Artificial Lily Flower
  • Flickering LED
  • Thermostat Wire
  • 100-330ohm Resistor
  • Mini switch
  • Solar-panel ~ 5vDC
  • Rechargeable Li-ion Coin-cell Battery
  • Rechargeable Li-ion Coin-cell Battery charger = TP4056 Mini USB 1A Lithium Battery Charger Module
  • USB to mini USB ~ 5ft. cord
  • Optional ~ hand-crafted vase station

Steps:

IMG_20180826_135523525

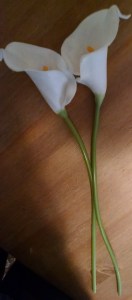

  • Cut the end of the stem and remove the wire.

IMG_20180826_135554418

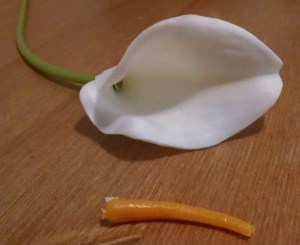

  • Gut the Artificial Lily Flower by removing its pistil.

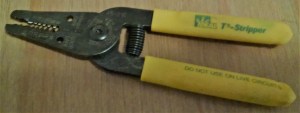

IMG_20180826_135814012IMG_20180826_134320215

  • Using a 8-10″ length of Thermostat Wire that extends just beyond the end of the lily’s stem, solder a 100-330ohm resistor to flickering LED and/or later near the mini switch inside the recycled case.

Do I really need a resistor?

  • Clear LED without resistor = 30mA @ 3vDC
  • Flickering Yellow LED ~ 6mA @ 3vDC
  • salvaged 10 LED string of lights = 6mA @ 3vDC



  • Carefully thread the wired LED through the lily and down her stem.

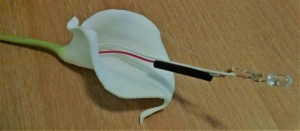

IMG_20180826_135619996

  • Add a piece of heat-shrink tubing, solder jumper wires, and attach connector header.

IMG_20180826_134646442

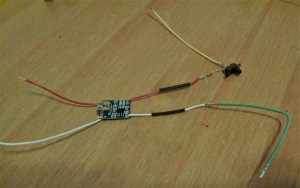

  • Solder a set of short jumper wires to the Rechargeable Li-ion Coin-cell Battery charger output.
  • Solder the Rechargeable Li-ion Coin-cell Battery charger output short jumper wires, resistor, to the mini switch and recycled case ( two “AA” batteries ).

IMG_20180826_134721596

IMG_20180826_134731388

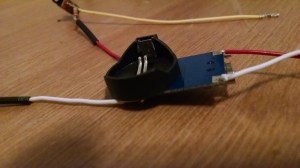

  • Solder the coin-cell battery holder to the Rechargeable Li-ion Coin-cell Battery charger
  • Insert the Rechargeable Li-ion Coin-cell Battery into the Rechargeable Li-ion Coin-cell Battery charger.

IMG_20180826_134228643

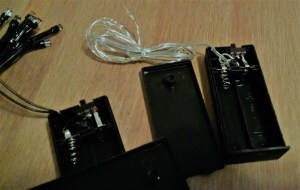

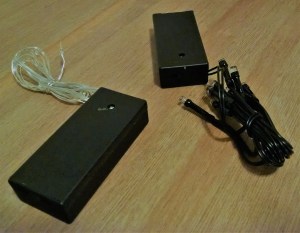

A look inside the inexpensive battery case.

IMG_20180826_134310725

  • Gut everything from the case!

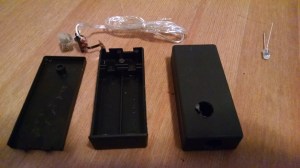

IMG_20180826_134428371

  • Drill a few holes.  One for the solar panel wires, and the other for USB connector.

IMG_20180826_134806554

  • Solder a simple switching diode, such as 1N4148, to the positive side.

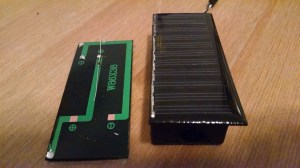

  • Using short jumper wires, solder the Rechargeable Li-ion Coin-cell Battery charger input to the solar panel ~ 5vDC.

IMG_20180826_140031232

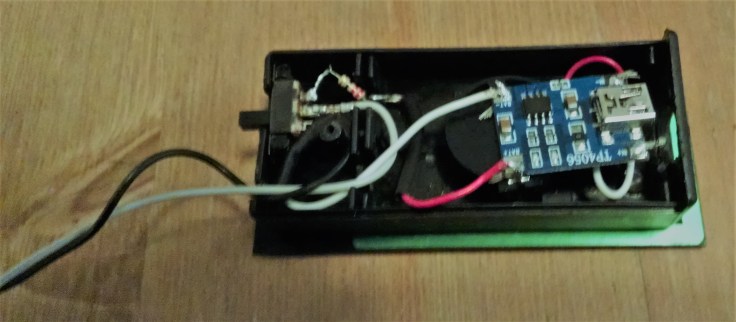

  • Insert the switch and wrap wires so they lay flat inside the case.

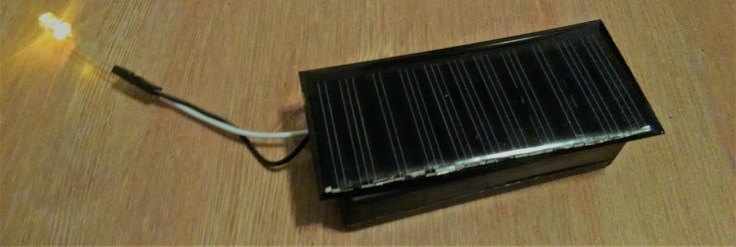

IMG_20180826_140138221

  • Test the output.
  • Optionally, attach USB to mini USB cord to the charger
  • Store inside a hand-crafted vase station.

IMG_20180731_145416444IMG_20180825_170808853lily

It takes time to learn how to use tools and equipment successfully, let alone, have the time to actually make the project meet your expectations.  Time used for the project is time that could be spent with family, friends, learning something more important, etc.

You can purchase a completed Phoenix Fire Lily directly from me as a functioning example.

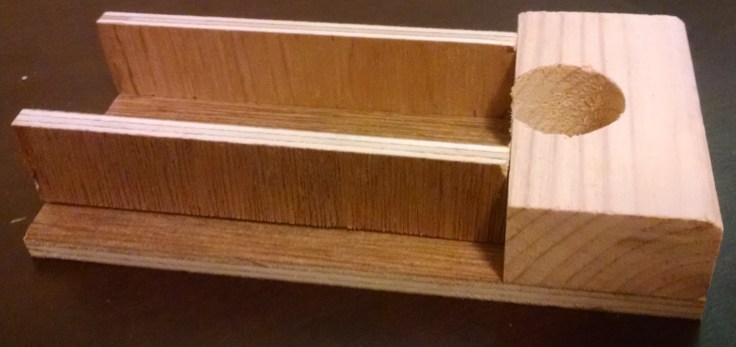

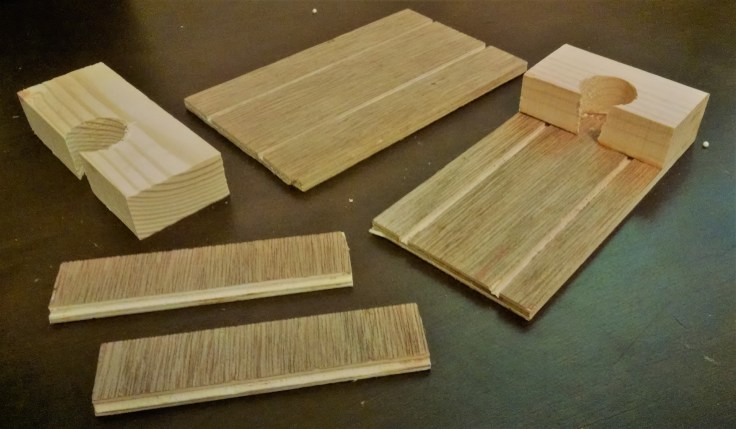

lily base partslily base v2
