Serving Your Pi to the World

You have several devices connected to your WiFi router, so how can you tell the outside where you are serving-up Raspberry Pi?

Getting Online

The following article assumes you have an updated and upgraded Raspberry Pi 3 or equivalent, and installed L.A.M.P. (Linux.Apache.MySQL.PHP.)  Excellent article for getting started and RaspberryPi.org’s installing LAMP.

You have several devices connected to your WiFi router, so how can you tell the outside where you are serving-up Raspberry Pi?  Let’s get familiar with our router’s advanced settings in your router manufacturer’s configuration tool.  Most home networks use one of these common IP addresses for their gateway to the Internet:

place-wifi-router


You will need to login to your router’s configuration tool.  The username and password should have been assigned at the time of setup.  First, we need to reserve an IP address for our Raspberry Pi to use on a regular basis.  Typically, the router will have a DHCP (Dynamic Host Configuration Protocol) Settings section, List and Bindings, etc.  The Raspberry Pi and all other devices on your LAN should be listed here.  Hopefully, your router will have a somewhat intuitive interface that will make sense as to how to assign an IP address to a device or MAC address.  If all else fails, consult your manufacturer’s instructions.

decapi-slider-raspberry-pi-casenetwork-782707_1280-980x637

The default port for web requests is 80.  You can leave the default unless your Internet Service Provider doesn’t allow port 80.  Next step in your router’s configuration is to have the router forward all incoming requests on port 80 to the Raspberry Pi.  Typically referred to as, Port Forwarding or Port Range Forwarding.  You will want to associate the Raspberry Pi’s IP address so that it will receive all incoming requests on port 80 or whatever port you find most appropriate.  The most secure web server is one that is not connected to the Internet 😉  Second to that, we should limit the access in our apache conf file to allow ONLY our IP and those known to us.  You could also allow Telnet, FTP, SSH, VNC, etc but I do not recommend unless you are familiar with the security risks associated with such services.

Get Yourself A Domain Name

http://www.YOUR_CUSTOM_DOMAIN.ddns.net

Check for the DDNS ( Dynamic Domain Name Service ) Setting in your Router’s advanced configuration settings.  Most routers will support one or more of the following, http://www.dyn.comhttp://www.noip.com, many others search Google for “Dynamic DNS”.  The service will offer the ability to register a domain name to associate with the Dynamic IP address that is assigned to you by your Internet Service Provider.  Typically, your router or a software plugin that you download and install will update the Dynamic DNS service’s database when your assigned IP address changes.

Security and Obscurity

“In security engineering, security through obscurity (or security by obscu58688968_1920_1080rity) is the reliance on the secrecy of the design or implementation as the main method of providing security for a system or component of a system. A system or component relying on obscurity may have theoretical or actual security vulnerabilities, but its owners or designers believe that if the flaws are not known, that will be sufficient to prevent a successful attack. Security experts have rejected this view as far back as 1851, and advise that obscurity should never be the only security mechanism.”  https://en.wikipedia.org/wiki/Security_through_obscurity

We often rely on our security being through some sort of obscurity.  “If they don’t know about it, they can’t use it to get in.”  Common household door locks only have so many combinations, yet we can rely on the lock of our front doors because we know that a thief would have to try every combination or break-the-door-down.  However, on the Internet, who is watching your front door, so a thief cannot try every combination?  Fortunately, our web-server has an access.log file that is automatically updated and archived for us.  Let’s start there and see if anyone has left their “footprints” on your web server.

Is anyone trying to gain access?

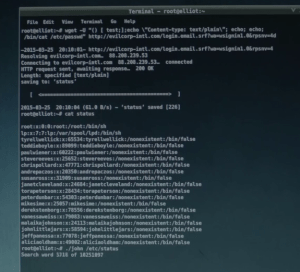

wget-shellshock-johnIf you are running a LAMP setup on a Raspberry Pi , open-up a terminal window and type in the following:

cd /var/log/apache2/
zcat access.log* | awk '{print $1}' | sort -n | uniq -c | sort -nr | head -20



The output should be a list with two columns, one containing the number of entries counted, and the second column is the IP address associated with each web request made.  The easiest way to get the most information from a reverse IP lookup is by using the following command:

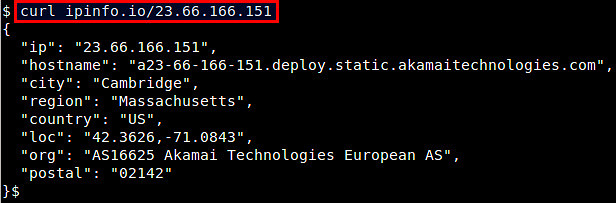

curl ipinfo.io/REPLACE.WITH.IP.ADDRESS.TO.LOOKUP

13117907603_3cce4123de_z

Rather than rely on an external web service, you can do some digging after you install some tools that are not included by default with the Pi:

sudo apt-get install geoip-bin
geoiplookup IP.ADDRESS

Here is a good article on using geoiplookup.  Even more advanced digging not included by default with the Pi:

sudo apt-get install dnsutils
dig -x IP.ADDRESS

Does the location seem suspicious?  Try grepping for the activity, the zgrep command includes the compressed files:

zgrep 'IP.ADDRESS' access.log* -1

By looking at the web requests that were made from the IP address, you can determine whether the activity is suspicious.  Typically, you will find that these IP addresses are from bots looking for vulnerabilities in your security.  You can manually block IP addresses to your blacklist or you can just deny all and allow select IP addresses.  If you haven’t already, you’ll want to install and setup a firewall.
