Setup and Use hydroMazing

  • The Controller ( Arduino Nano ) uses 433MHz Transmitter to send codes to remote-controlled AC Outlets or can connect directly via a transistor, MOSFET, or relay.
  • Web Services Module ( Raspberry Pi ).
    • Optional Web-Camera ( USB Web-Camera ).
  • Optional  ( connect directly via a transistor, MOSFET, or relay.  Supports additional sensors: E.C., pH, Light Intensity, more floats and flow-rate sensors.

I liked the simple inventory management system application so much, I borrowed its web interface to improve hydroMazing:

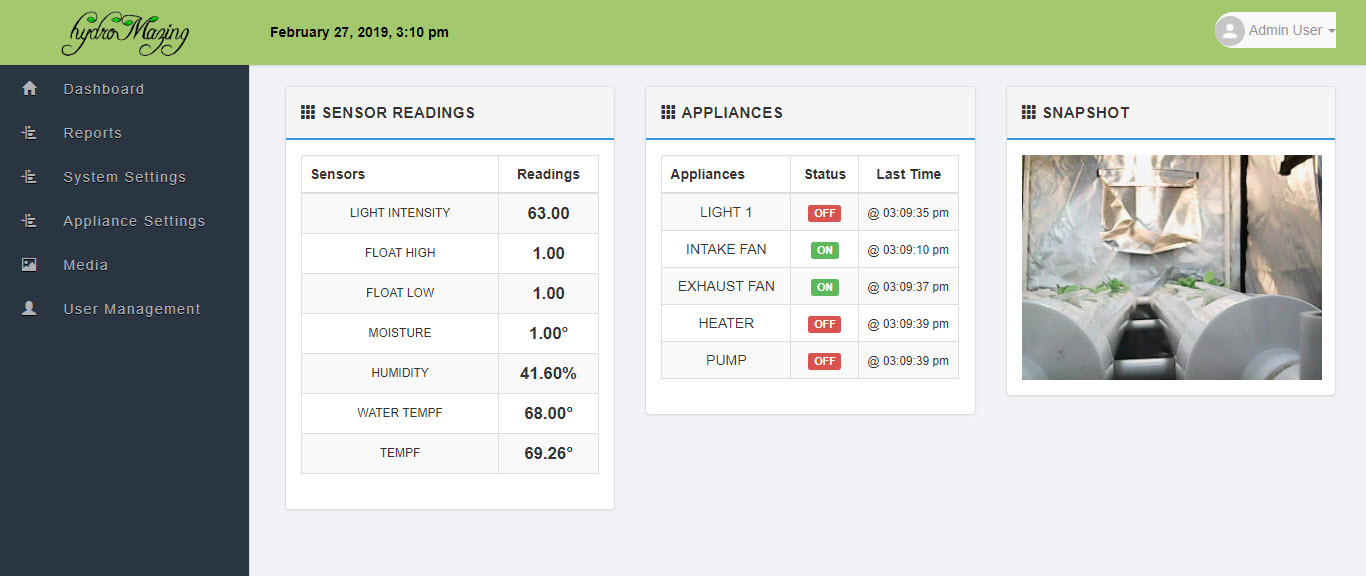

hydroMazing snapshot

What are the steps needed to use hydroMazing?

  • Connect the Raspberry Pi to your local router using an Ethernet cable.
  • Plug in the hydroMazing Controller unit’s USB to the Raspberry Pi.
  • Optionally, plug in the USB webcam.
  • Power the Raspberry Pi.
  • Use a Power Squid ( Multiple Plugs ) to attach the Remote Controlled AC Outlet Modules to their corresponding appliance assignment according to the hydroMazing Smart Garden System’s settings.

Plug-in appliances to their corresponding remote controlled AC switch units.  Most growing environments can be configured as follows:

  1. Light
  2. Intake Ventilation Fan
  3. Exhaust Ventilation Fan
  4. Humidifier / Heater / Additional Lighting
  5. Pump(s)

Also see Controlling Appliances.

How to Access the Web Interface:

  • Use a wormhole service such as Dataplicity.io
  • Or, Discover the IP address that your router has assigned to the Raspberry Pi, running hydroMazing Services.
  • Or, use a DDNS service to update the dynamic address assigned to your router and directly access the web interface



  • Login to the web interface using the admin credentials provided.  Example URL of web interface http//[your-device].dataplicity.io/hydroMazing/
  • Click ~ Settings → Automatic Timezone → Update
  • Click ~ Settings → Email Notifications → [ enter your email address ] → Save
  • If your growing environment is not within an Ethernet cable distance away from the router then you will need to configure the WiFi.
  • Click ~ WiFi Settings → SSID → [ enter your router’s SSID ]

Passkey → [ enter your router’s WiFi password ] → Save

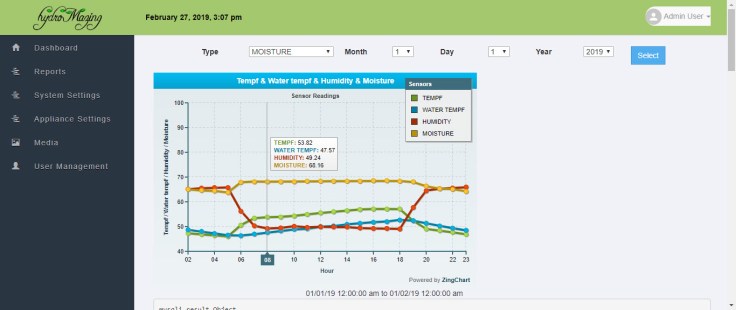

hydroMazing chart
